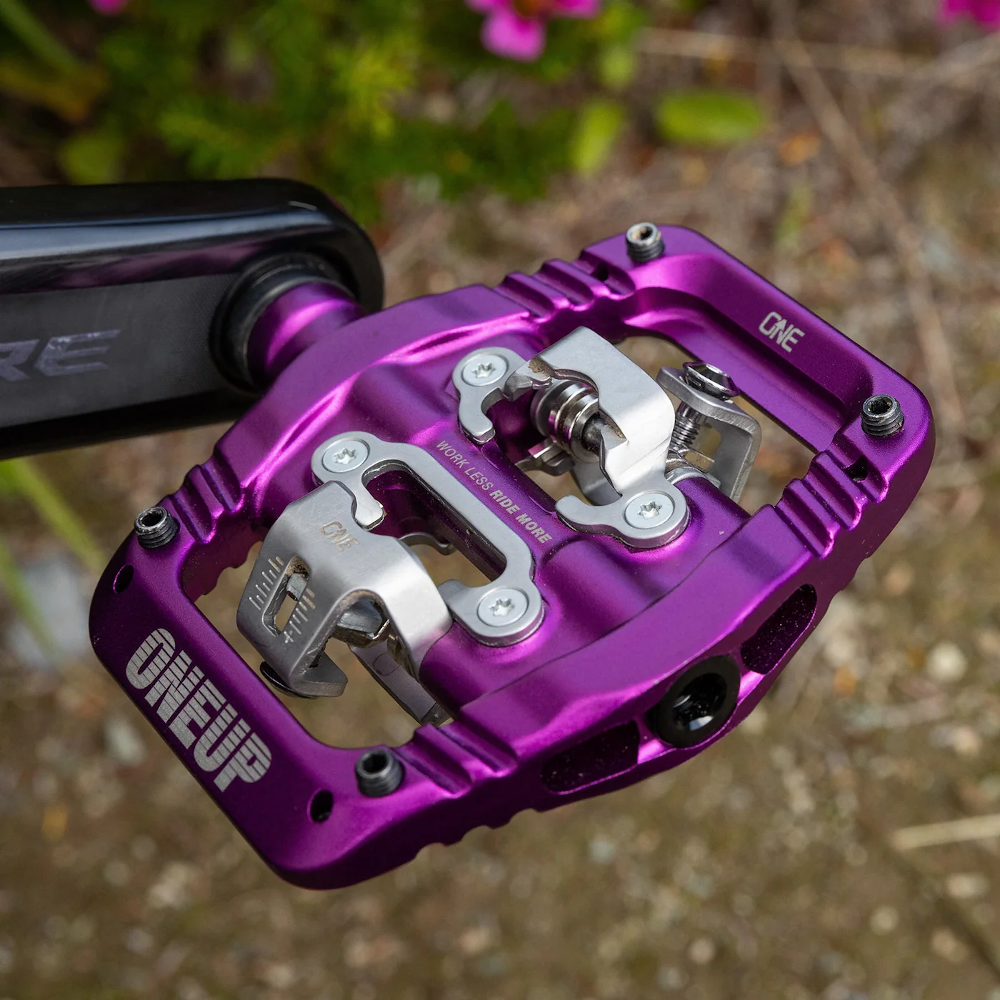

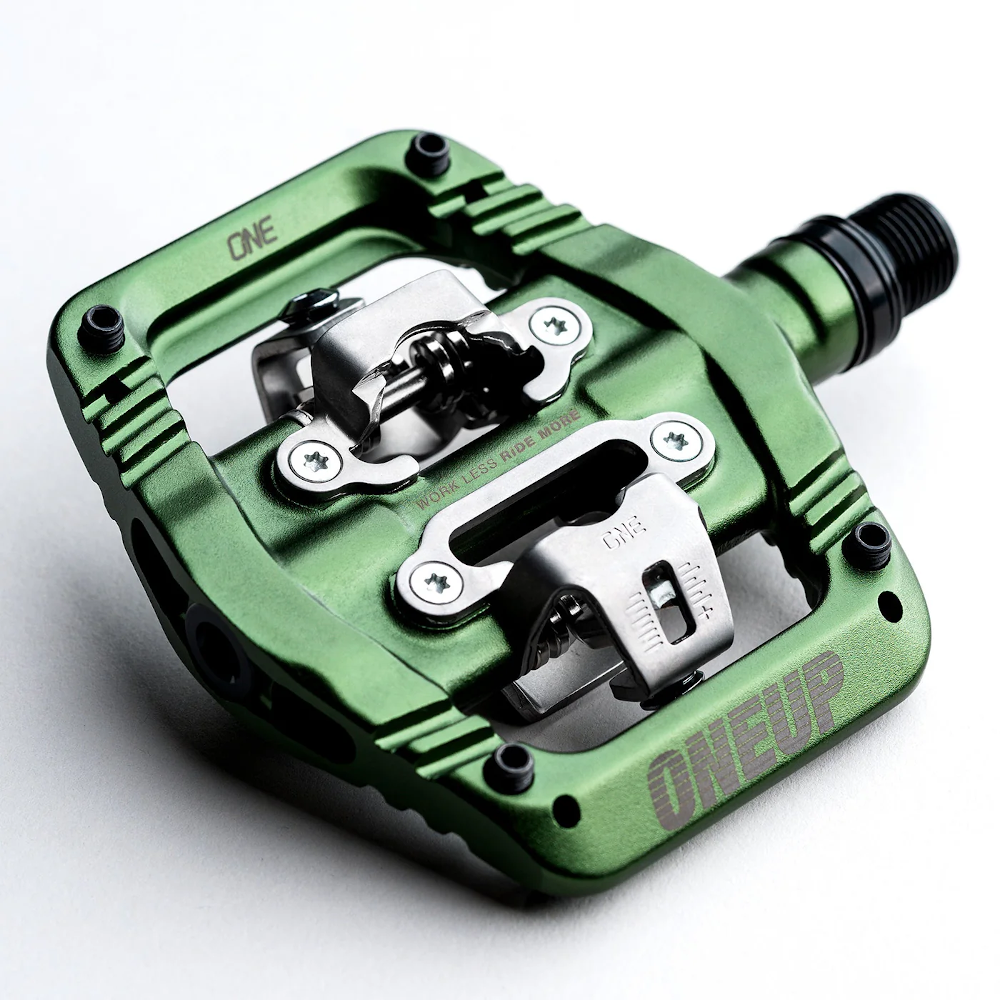

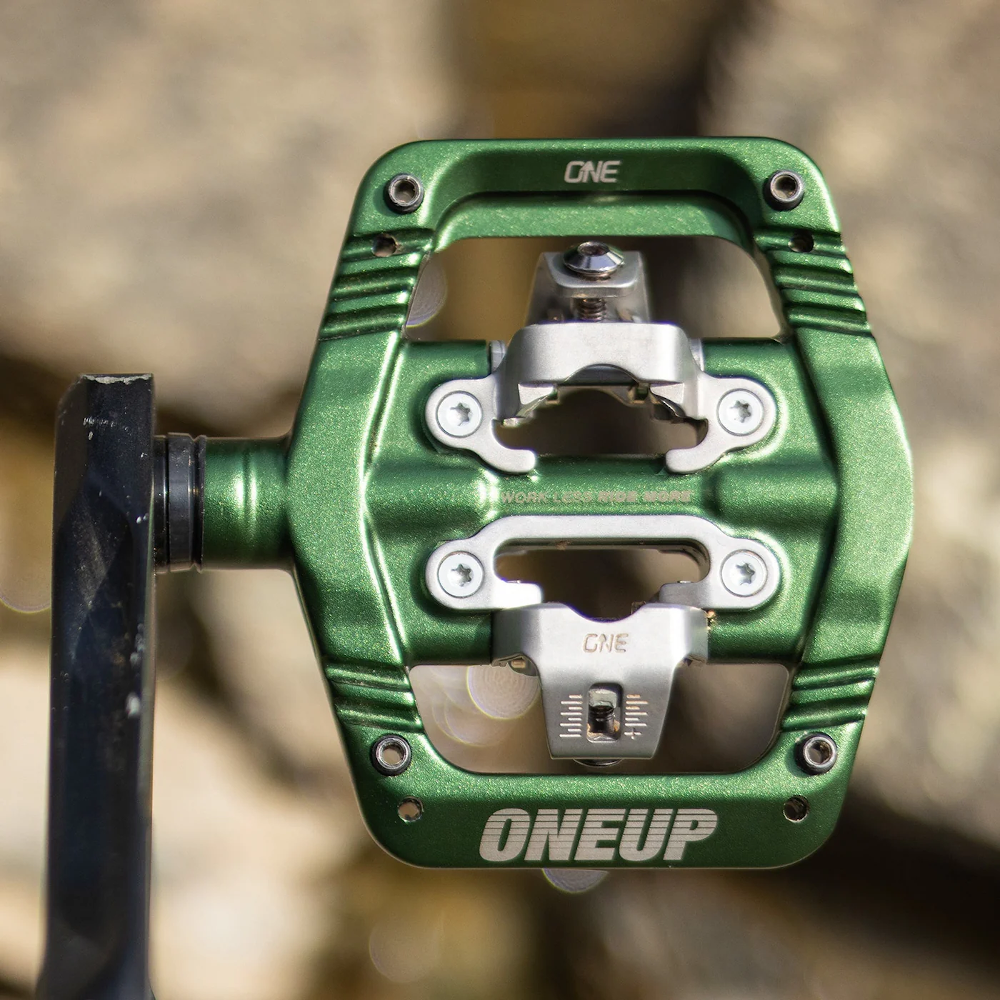

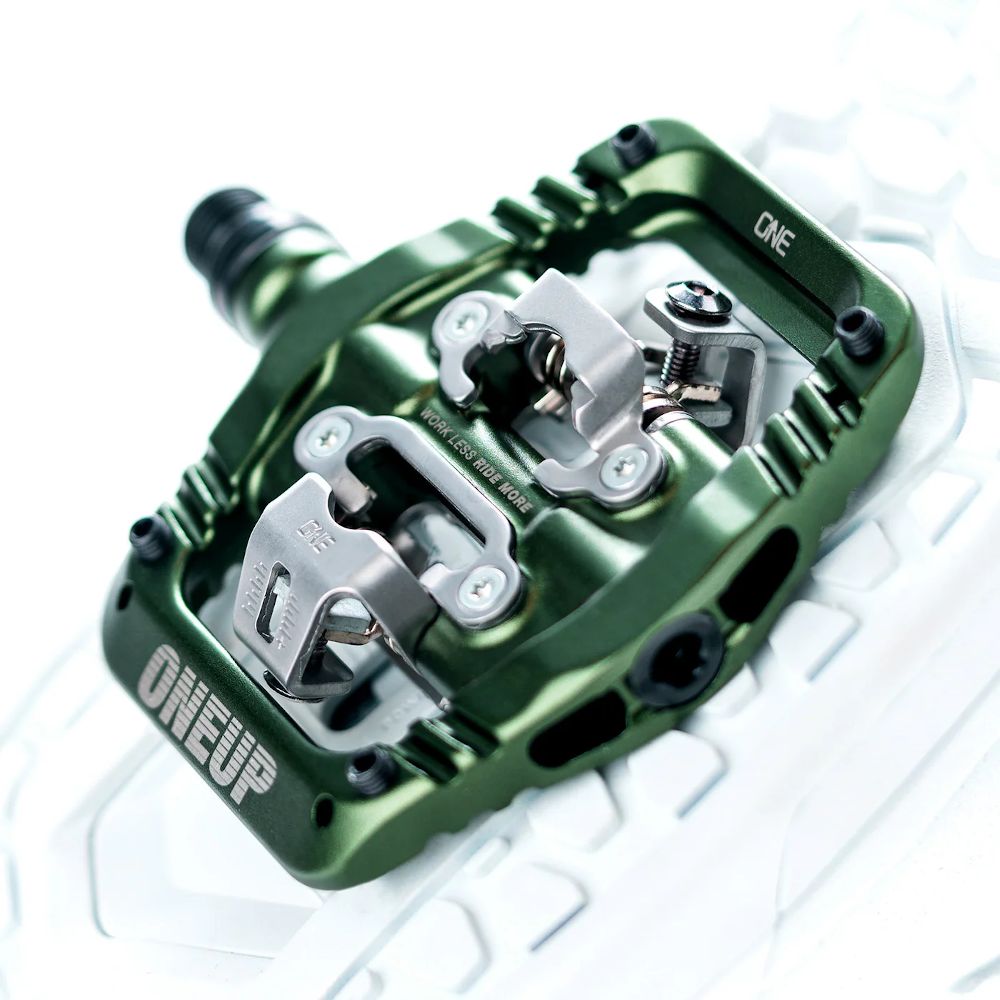

OneUp Components Clip Pedals

The OneUp Components Clip Pedals are newest product line from the Squamish, Canadian based brand. These are some of the lightest and thinnest SPD pedals ever produced at only 26.8mm thin! Combine that with a DH sizeable platform, here you get the best of both worlds. Weight and foot support.

The cleat mechanism is SPD compatible and tension adjustable. It offers 5 degree of float at a 12 degree release angle, all with no unwanted play.

Available in 8 of OneUp’s favourite colours to match up with your other components, these are your new favourite pedals.

Specifications:

• Weight: 410g with pins (4 pins per side).

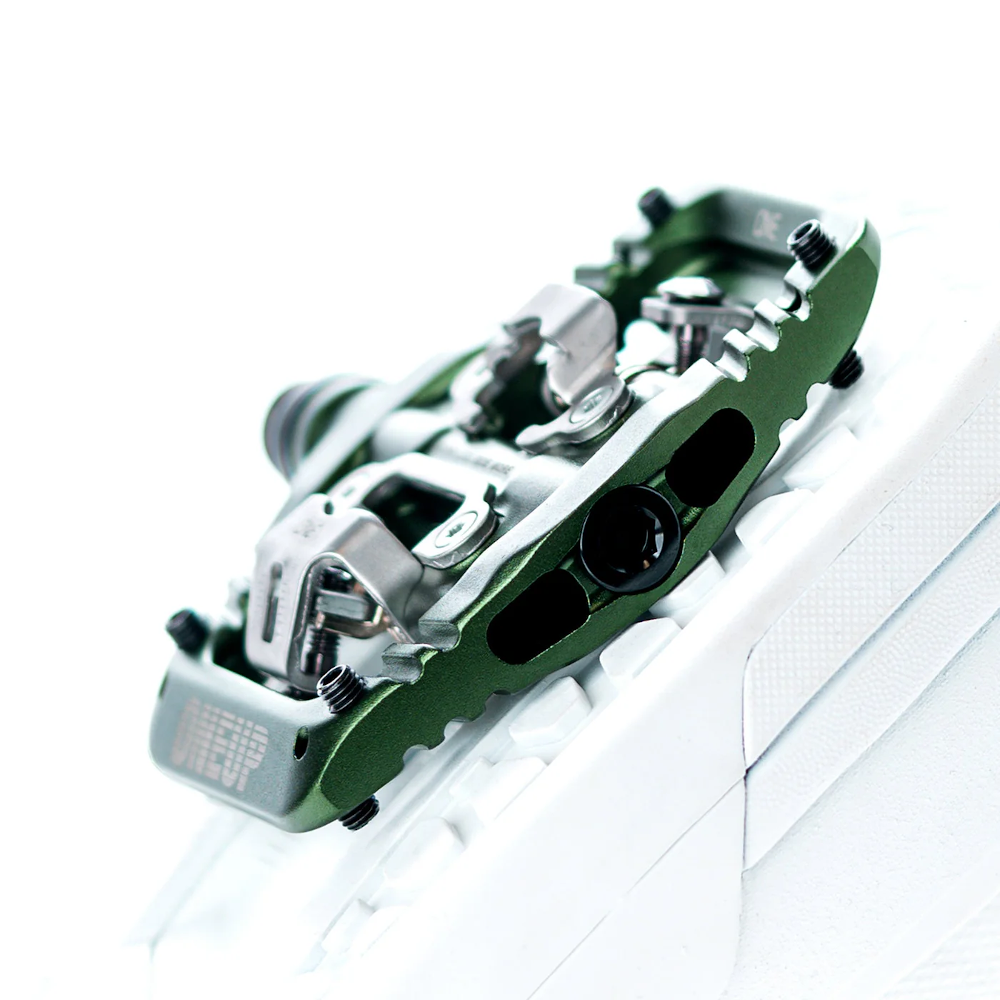

• Thickness: 14.4mm (body), 26.8mm (binding).
• Size: 80mm x 90mm (W x L).
• Stance width: 57.5mm (centre of clip to outside of crank face).
• Float: 5° (12° release angle).
• Cleats: SPD™ Compatible (includes 1mm cleat spacers for shoe fit tuning).
• Bearing configuration: Inboard igus® Bushing and 3x outboard sealed cartridge bearings.
• Axle: Chromoly Steel with Black ED coating.
• Pins: Hollow M5x8mm threaded pins (self cleaning hex through hole).
• Colours: Black, Red, Dark Green, Dark Blue, Orange, Purple, Grey, Bronze.

What’s in the box:

• 2x Clip Pedals (1x Left, 1x Right).
• 4x Installed hollow threaded pins per side (16x pins total).

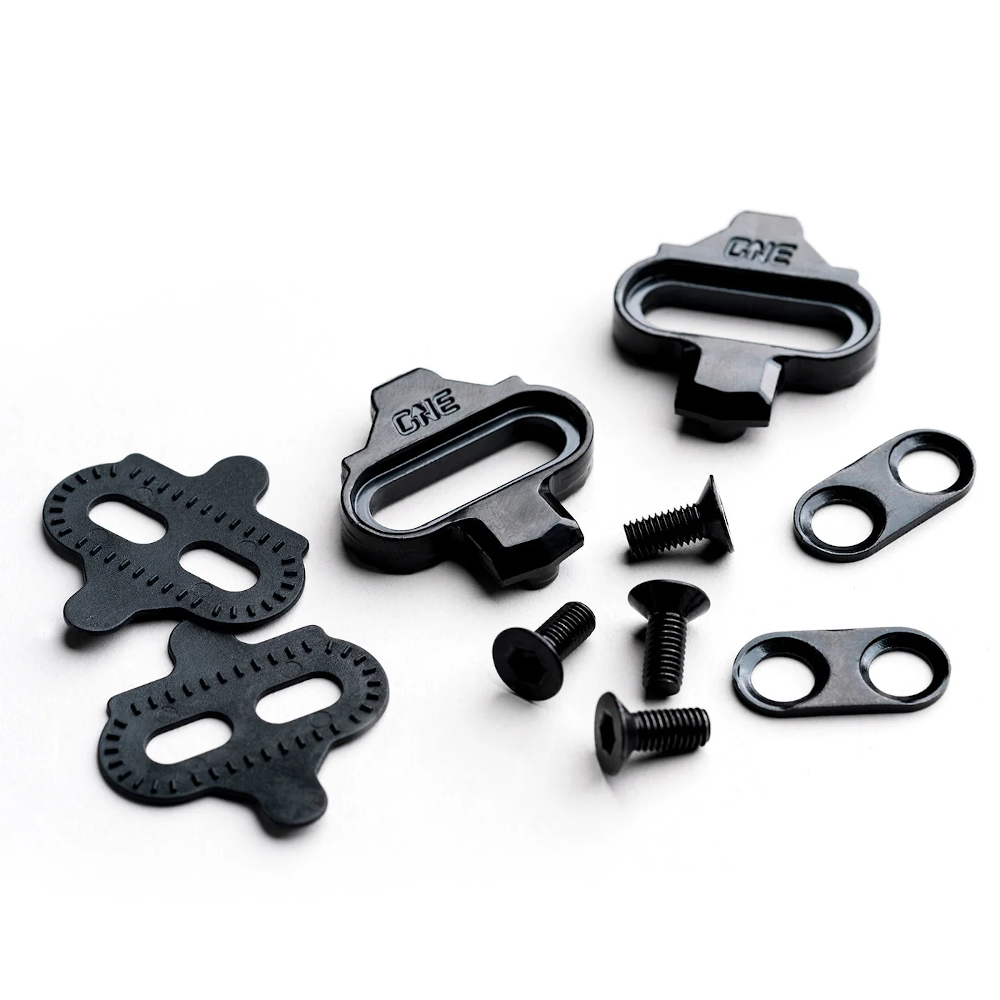

• 2x OneUp Cleats with included hardware.
• 2x Cleat Spacers.
• 1x Pedal Bearing Nut Tool.

Things you should know:

• Comes with SPD™ compatible cleats and 1mm cleat spacers for shoe fit tuning.
• Hollow, removable traction pins offer fine-tuning of grip and support, with a mud-clearing design that can be installed or removed from either side of the pedal.
• Included Pedal Bearing Nut Tool allows you to easily disassemble, clean, and grease your axle system.
• Custom, Stainless Steel, SPD™ Compatible Binding offers a locked-in feel with no unwanted play, and works with OneUp’s own cleats and Shimano SPD™ cleats.
• 5 degrees of float and 12 degree release angle.
• 1 year manufacturer warranty.

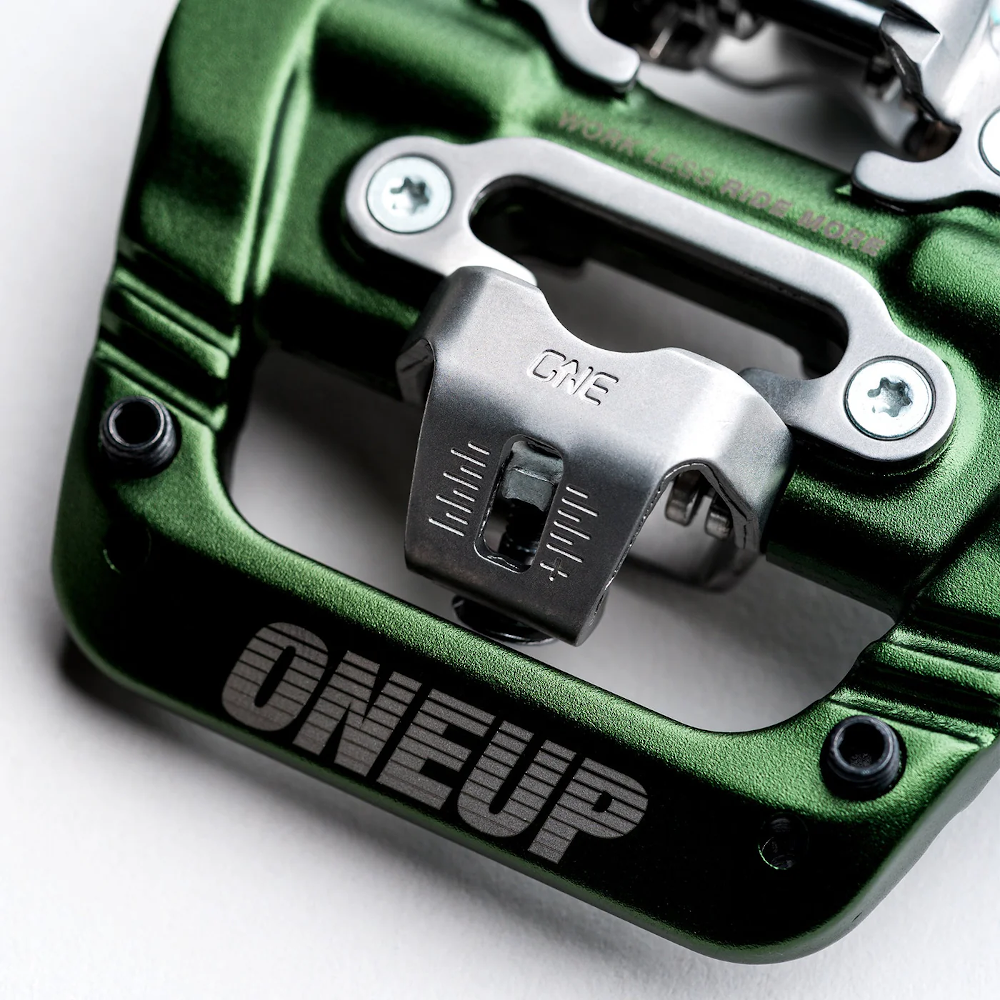

• Wide-range release tension adjustability is secure enough for racers, yet forgiving enough for beginners, with an indicator to easily match the tension on all four bindings.
